Product details table:

Physical and chemical properties:

Physical properties

Appearance:

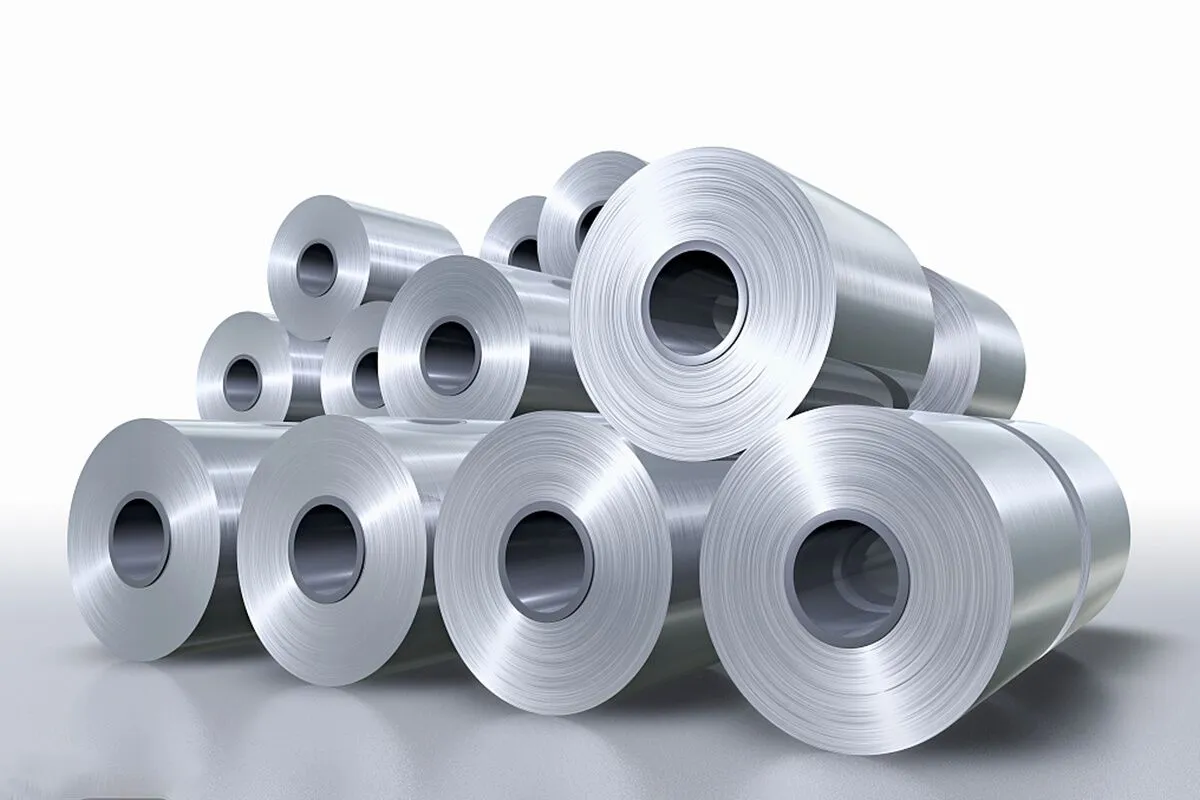

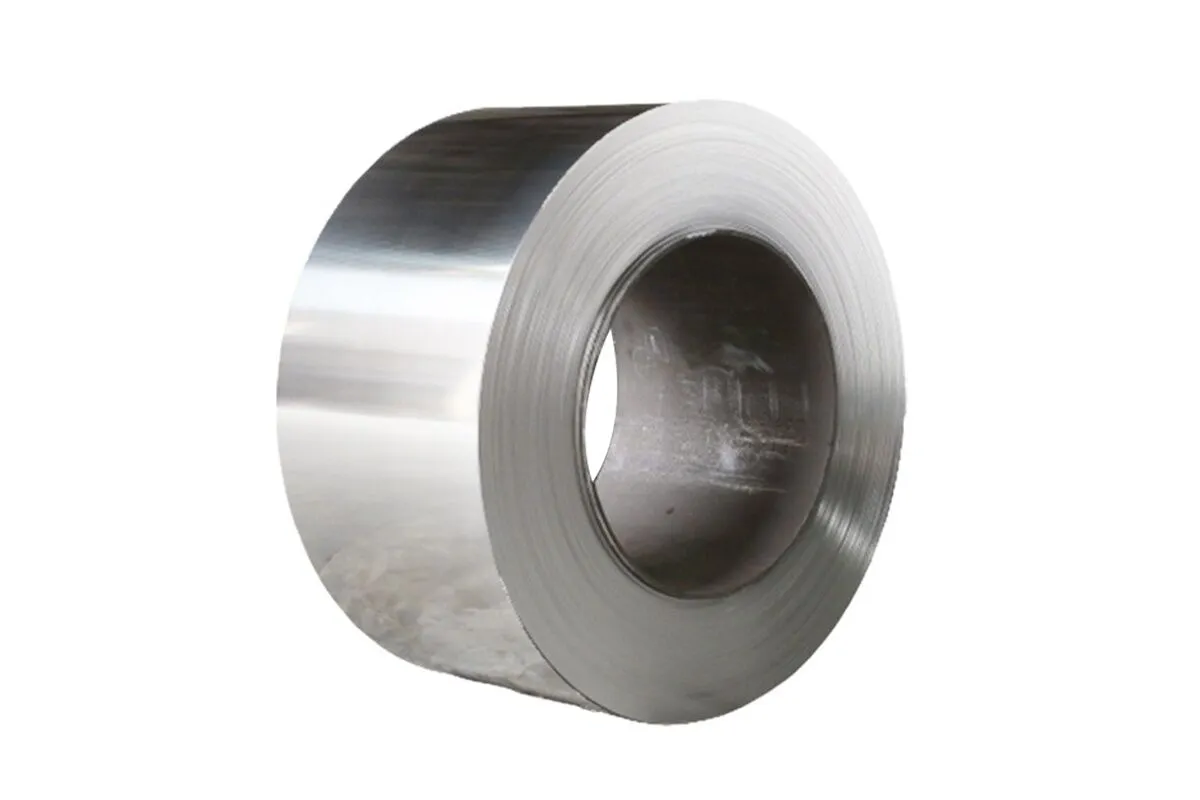

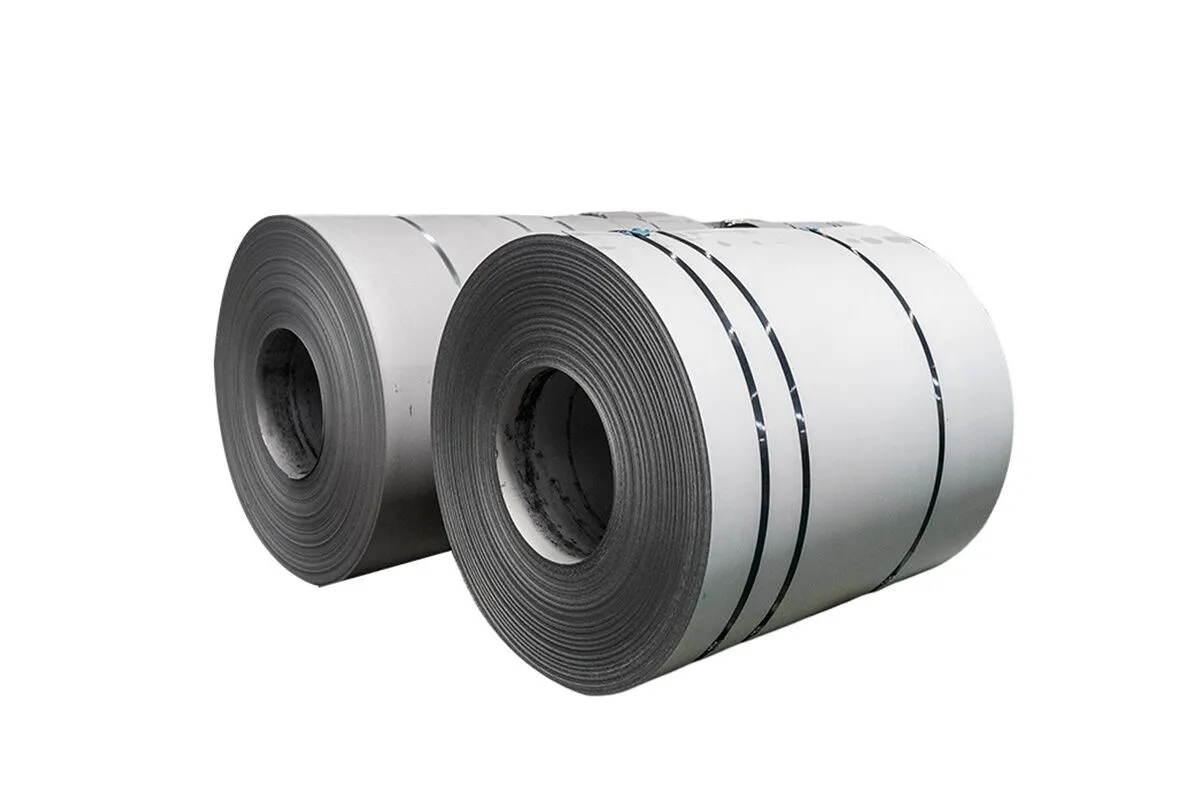

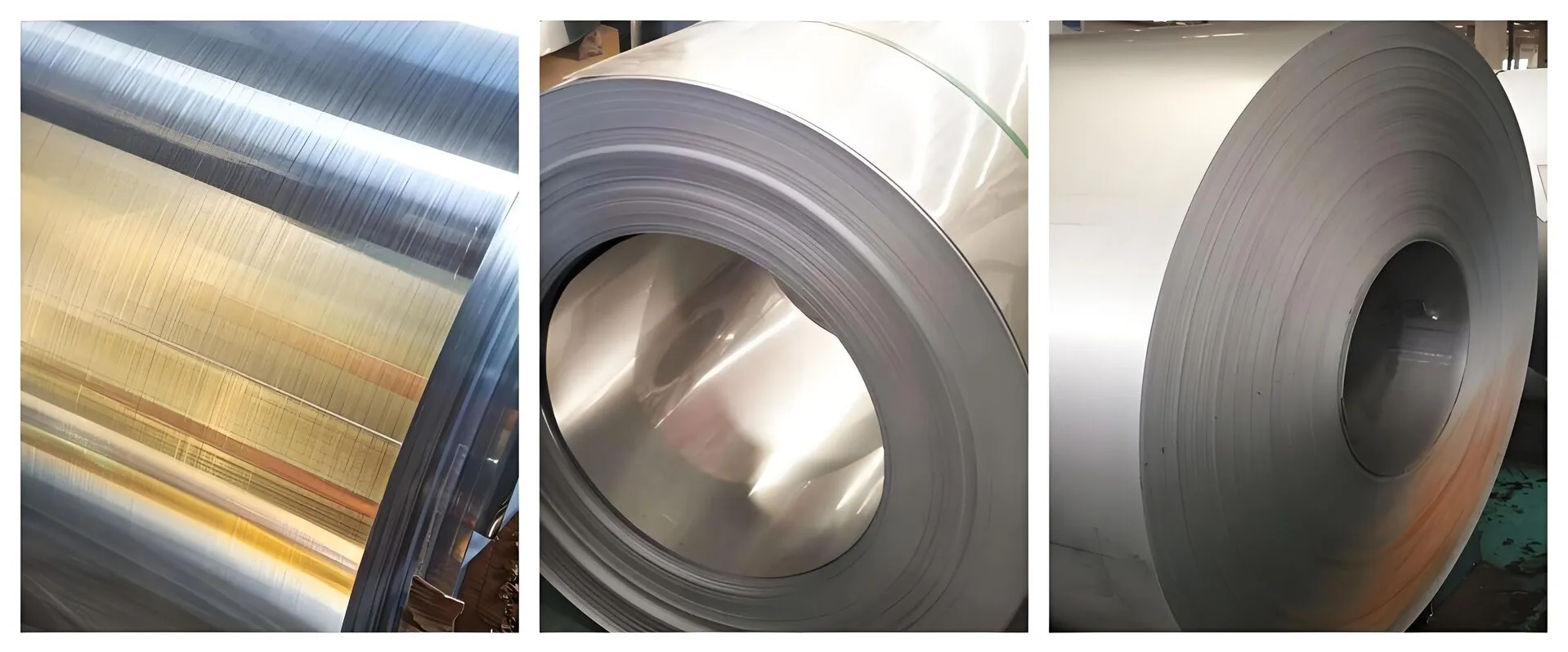

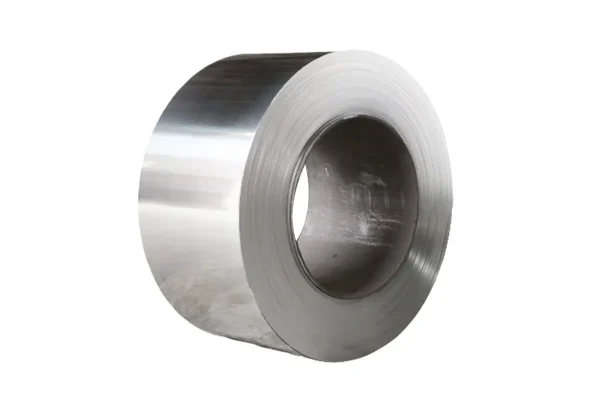

It usually presents a silvery white metallic color, with a smooth surface and high gloss. Different surface effects can be obtained through different surface treatment processes, such as mirror polishing, brushing, etc. 316L stainless steel coils are often used in applications where aesthetics, corrosion resistance, and hygiene are critical.

Density:

The density is generally around 7.98g/cm³. For example, the density of 316L stainless steel coil is approximately 7.98g/cm³, which is slightly higher than ordinary carbon steel and comparable to other austenitic stainless steels like 304.

Melting point:

The melting point is relatively high, generally around 1375-1450℃. For example, the melting point of 316L stainless steel is about 1399-1440℃, which makes it suitable for use in high-temperature environments while maintaining stability.

Coefficient of thermal expansion:

The coefficient of thermal expansion is relatively small. In the range of room temperature to 100℃, the coefficient of thermal expansion of 316L stainless steel is about 15.9×10⁻⁶/℃. This feature enables it to maintain good dimensional stability even in environments with significant temperature fluctuations.

Thermal conductivity:

The thermal conductivity is poor, and its thermal conductivity coefficient is about 16.2 W/(m・K), which is much lower than that of copper, aluminum, and other metals. This property gives it certain thermal insulation characteristics, making it suitable for specific industrial applications.

Electrical conductivity:

It has certain electrical conductivity, but the conductivity is relatively low. The conductivity of 316L stainless steel is about 1.3×10⁶ S/m, which is only about 3.8% of the conductivity of copper. This limits its use in high-conductivity applications but ensures its suitability for corrosion-resistant environments.

Chemical properties

Corrosion resistance:

This is one of the most important chemical properties of 316L stainless steel coils. Due to its low carbon content (less than 0.03%), it forms a dense passivation film on its surface, which prevents oxygen, water, and other corrosive agents from contacting the metal matrix. It exhibits excellent resistance to pitting and crevice corrosion, particularly in chloride-rich environments. For example, 316L stainless steel is highly resistant to corrosion in marine environments, chemical processing plants, and areas exposed to chlorides.

Antioxidation:

316L stainless steel coils have good oxidation resistance at both room temperature and elevated temperatures. They can withstand prolonged exposure to high temperatures without significant oxidation, making them suitable for applications in heat exchangers, furnace components, and exhaust systems.

Chemical stability:

In general chemical media, 316L stainless steel coils exhibit high chemical stability and are not prone to reacting with common chemicals. However, in some specific strong corrosive media, such as hydrochloric acid or sulfuric acid at high concentrations, its corrosion resistance may be compromised. Proper selection of material grade is essential for such environments.

Passivation:

After exposure to air or after passivation treatment, a dense passivation film forms on the surface of 316L stainless steel coils. This passivation film enhances corrosion resistance and oxidation resistance. Passivation treatment typically involves immersing the stainless steel coil in a solution containing an oxidant, such as nitric acid or citric acid, to promote the formation and repair of the protective layer.

Application:

316L stainless steel coils are widely used in many fields due to their excellent corrosion resistance, high strength, and good formability. In the medical industry, they are used to manufacture surgical instruments, implants, and pharmaceutical equipment, ensuring biocompatibility and sterility. In the food processing industry, they are used to produce hygienic surfaces, storage tanks, and conveyor systems, meeting strict hygiene standards. In marine environments, they are used for shipbuilding, offshore platforms, and seawater desalination plants due to their resistance to chloride-induced corrosion. Additionally, in the chemical and petrochemical industries, 316L stainless steel coils are indispensable for manufacturing reactors, heat exchangers, valves, and pipelines. Their ability to adapt to complex working conditions makes them a preferred choice across various industries.
